RAIMONDI

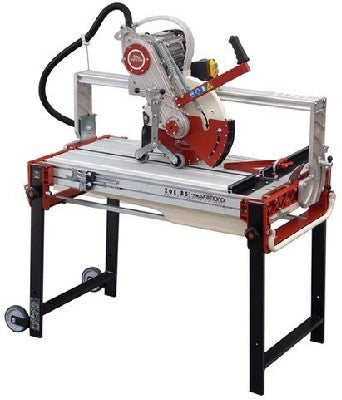

RAIMONDI ZOE 85A ELECTRIC WET SAW

RAIMONDI ZOE 85A ELECTRIC WET SAW

Regular price $4,389.00 AUD
Regular price $4,389.00 AUD Sale price $4,389.00 AUD
Sale
Shipping calculated at checkout.
Enquire Now

THIS ITEM IS FOR STORE PICK UP ONLY OR CALL US FOR A BULKY GOODS FREIGHT QUOTE.

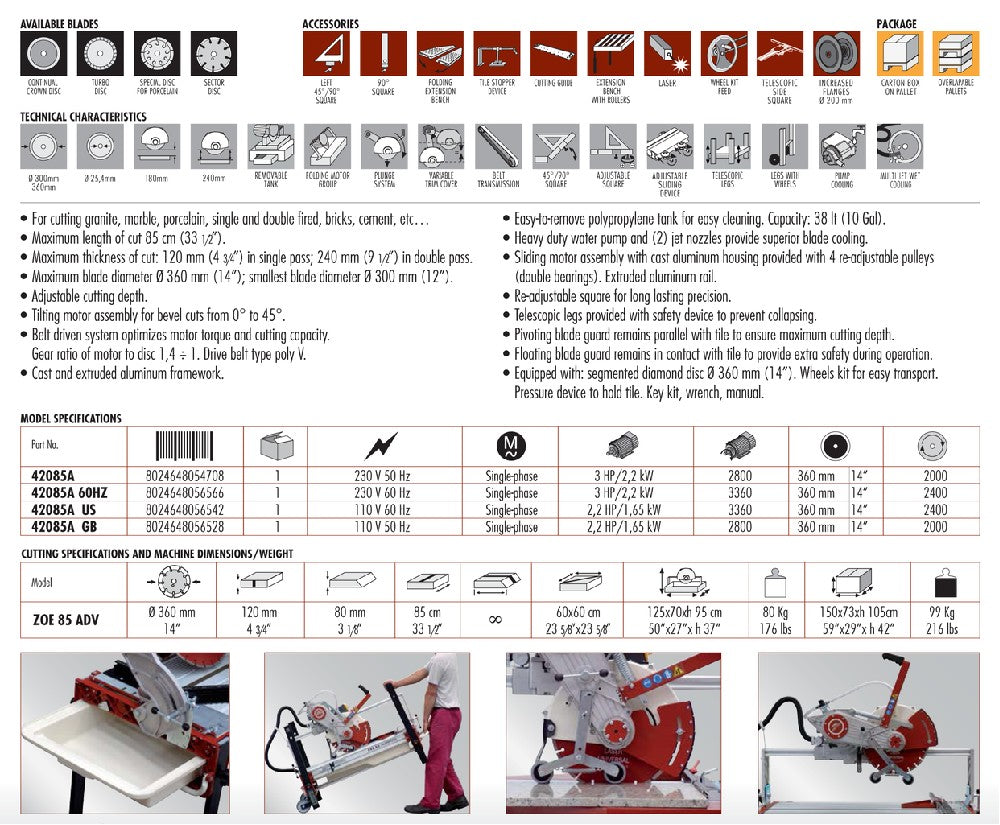

For cutting granite, marble, porcelain, single and double fired, bricks, cement, etc

Straight, 45 degrees bevel (Jolly) & plunge cuts.

Maximum length of cut: 85cm.

Maximum thickness of cut: 120 mm.

Maximum blade diameter 360 mm; smallest blade diameter 300 mm.

Adjustable cutting depth.

Tilting motor assembly for bevel cuts from 0 to 45 degrees.

Belt driven system optimizes motor torque and cutting capacity. Drive belt type poly V.

Cast and extruded aluminium framework.

Easy-to-remove polypropylene tank for easy cleaning. Capacity: 38 ltr.

Heavy duty water pump and (2) jet nozzles provide superior blade cooling.

Sliding motor assembly with cast aluminium housing provided with 4 re-adjustable pulleys (double bearings). Extruded aluminium rail.

Re-adjustable square for long lasting precision.

Telescopic legs provided with safety device to prevent collapsing.

Pivoting blade guard remains parallel with tile to ensure maximum cutting depth.

Floating blade guard remains in contact with tile to provide extra safety during operation.
