IMER

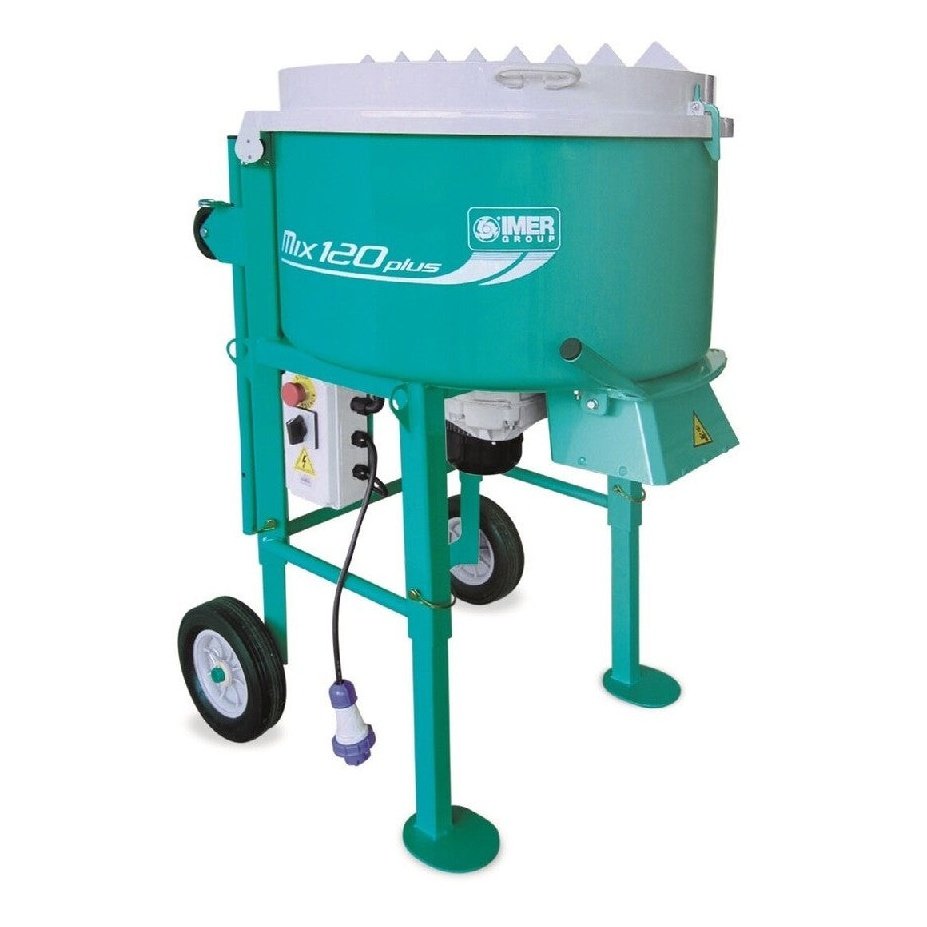

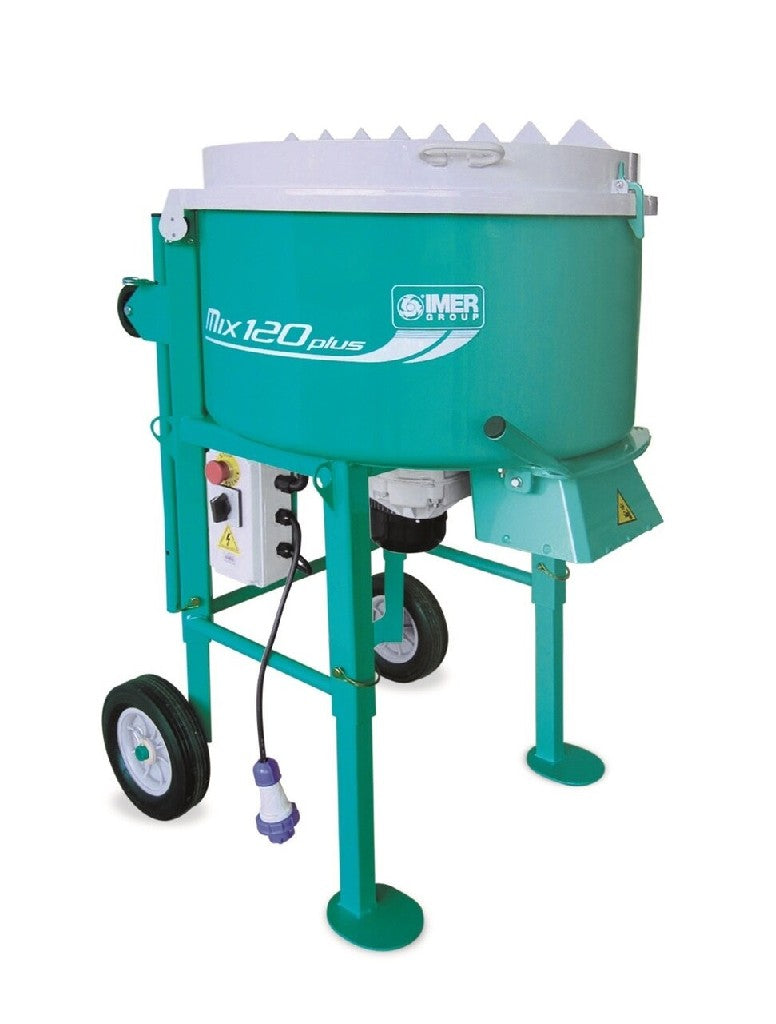

IMER SCREED MIXER 120L 1.4KW ELECTRIC

IMER SCREED MIXER 120L 1.4KW ELECTRIC

Regular price $5,225.00 AUD
Regular price $5,225.00 AUD Sale price $5,225.00 AUD
Sale
Shipping calculated at checkout.

SKU: IM-MIX120P

THIS ITEM IS FOR STORE PICK UP ONLY OR CALL US FOR A BULKY GOODS FREIGHT QUOTE.


PRODUCT DESCRIPTION
Features:

Heavy Duty Screed and Mortar Mix preferred by Hire companies and Serious contractors!

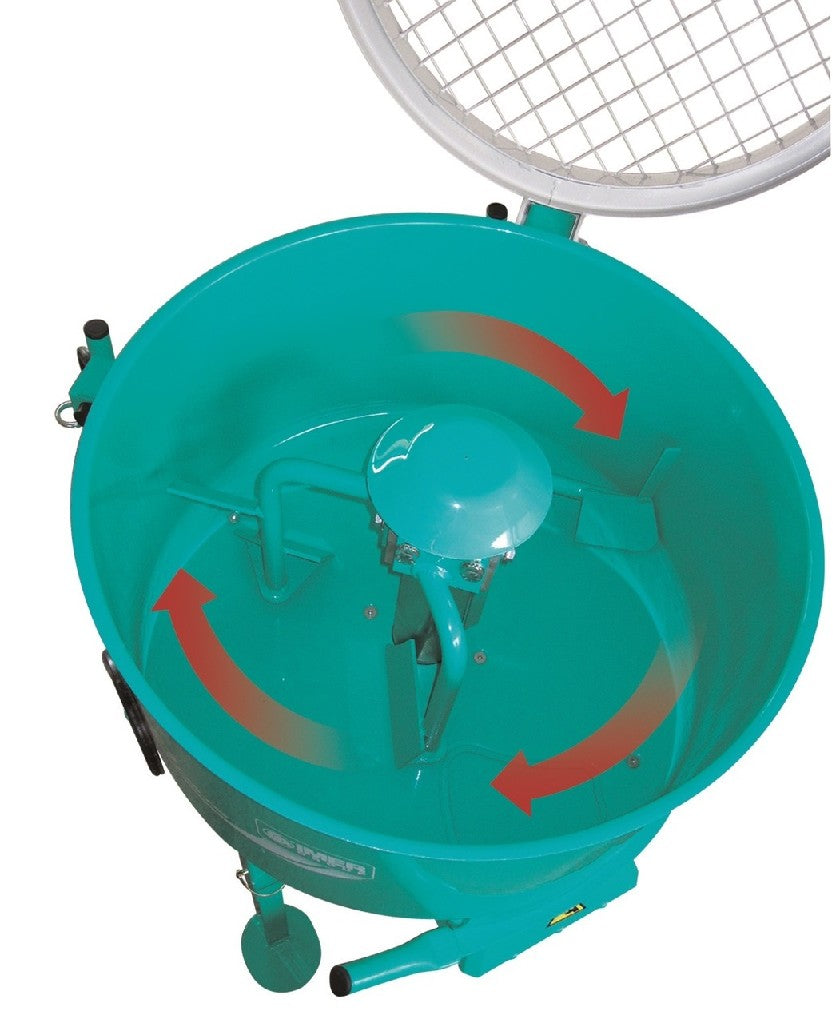

Compact mixer with planetary mixing system.
Adjustable discharge height, thanks to the extendable legs (max./min. 677/612 mm)
High power, improved speed and reversible paddle rotation at any time ensure optimised mix also with
difficult products to batch (semi-dry mixtures and thixotropic products)
Homogeneous mix in short time using the forced duty planetary mixing system with optimised profile
paddles.
No air is mixed with product

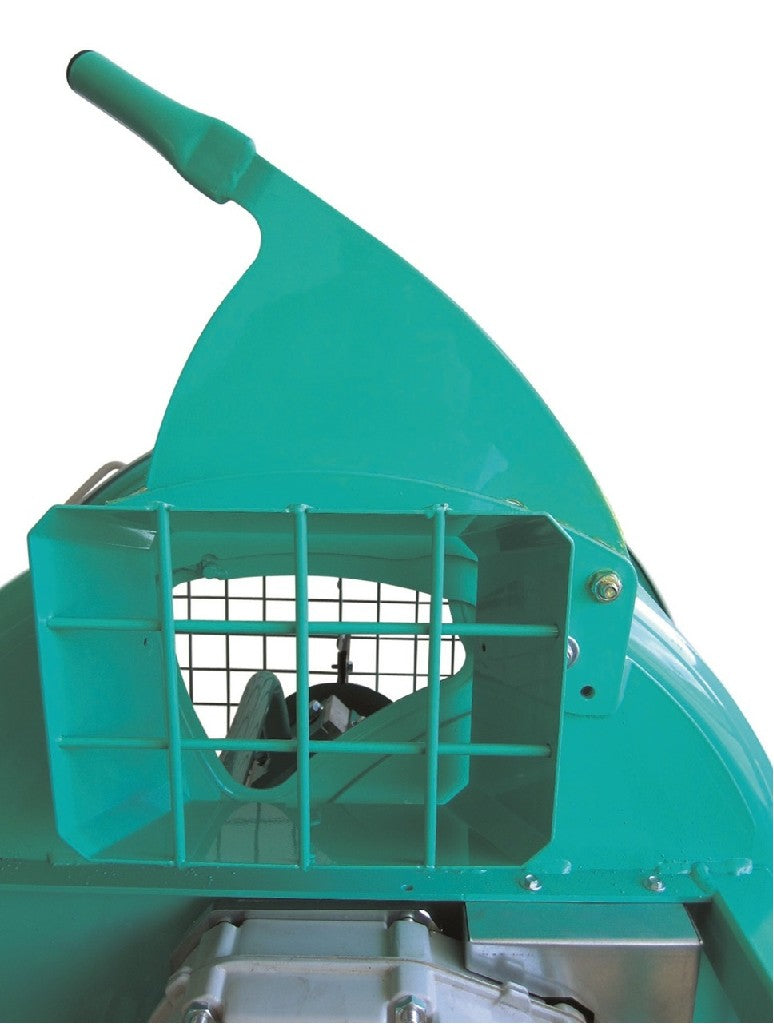

Ease in discharge operations and moving material thanks to the upper wheels and the extendable handles
Maximum safety for the operator: an electric device stops paddle rotation when the grid rises
STANDARD EQUIPMENT:

Single-phase motor 230V/50Hz -
Gearbox in oil bath and high performance Poly-V
Transmission belt
Additional wheels
Lifting hooks
Extendable handles
Grid with bag-splitting blades
Paddle rotation reversing gear
Switch with overheat safety system, insulation class
IP 55, no-volt coil and IP67 plug
Electric safety limit switch
TECHNICAL SPECIFICATIONS:

Lp in operators position dB(A): 70
Running current: 9 amps
Motor power rate: 1,4 kW
Paddle speed rpm: 38
Drum diameter mm: 745
Actual yield litre: 90
Drum capacity litre: 120
Width: 755mm (fits through a standard doorway)
